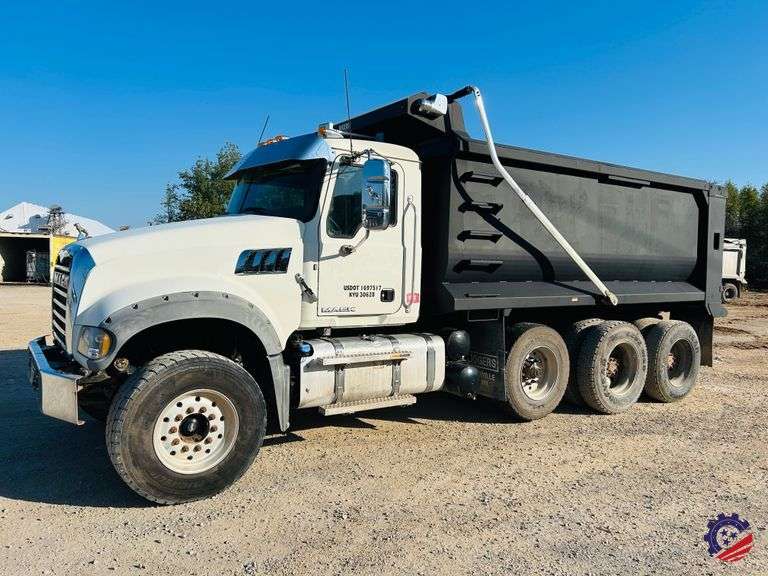

2017 MACK Granite GU713 Tri-Axle Dump Truck
Key Specifications:
-
Engine: Mack MP8-455M, 13.0L, 455 HP @ 1500–1900 RPM (2100 RPM governed)
-
Emission System: EPA-2014 with CEGR/DPF/SCR; cooled EGR, DEF system, vertical right-side stack
-
Transmission: Mack mDRIVE HD 12-speed automated overdrive, premium spec
-
Axles:
-
Front Axle: 20,000 lb Mack FXL20 with multileaf suspension, 20000 lb load rating
-
Rear Axles: Mack SS440 tandem, 44,000 lb rating, 3.98 ratio, double reduction, leaf spring suspension
-
-
Brakes: Meritor automatic slack adjusters; Eaton “S” cam drum brakes; ABS with traction control
-
Chassis / Frame:
-
222” wheelbase, axle-forward configuration
-
Frame rails: 300mm x 90mm x 11.1mm (11.81” x 3.54” x 0.437”), Huck-bolted
-
Rear frame length: 2245 mm (88.4”)
-
-
Fuel Capacity: 88-gallon polished aluminum D-shaped LH fuel tank with stainless straps
-
Body: Dump body application (factory-coded as dump truck), day cab configuration, Rogers 16' Body with Electric Tarp
Maintenance & Work Order History
This 2017 Mack Granite GU713 has been routinely maintained with documented work orders through 2024–2025. Notable service items include:
-
Brakes: Multiple brake system services completed (last in May 2025 at 415,000 mi / 18,700 hrs)
-
Tires: Several tire replacements and services through July 2025 (last at 425,000 mi / 19,100 hrs)
-
Suspension & Air System: Suspension service and air tank work in May 2025 (414,000 mi / 18,600 hrs)
-
Cooling & Heating: Defroster/heater service (May 2025) and A/C service (Oct 2024 at 382,000 mi / 17,300 hrs)
-
Drivetrain: Rear end and front differential serviced in Sept 2025 (426,000 mi / 19,150 hrs)
-
Electrical & Batteries: Batteries replaced July 2025 (423,000 mi / 19,000 hrs); lights serviced in May 2025
-
Exhaust/Emissions: DPF serviced/replaced Feb 2025 (400,000 mi / 18,000 hrs)
-
Other: Various repairs and adjustments (last in June 2025 at 419,000 mi / 18,800 hrs)
Latest Recorded Service
-
September 2025: Bed and rear end service at 426,401 miles
-
Engine: Mack MP8-455M, 13.0L, 455 HP
Cylinders: 6
Transmission: Mack mDRIVE HD 12-speed automated overdrive, premium spec
Speeds: 12
Suspension: Mack Camelback
Odo Shows: 426,668 Miles
This Item Located In: Clarksville, TN
